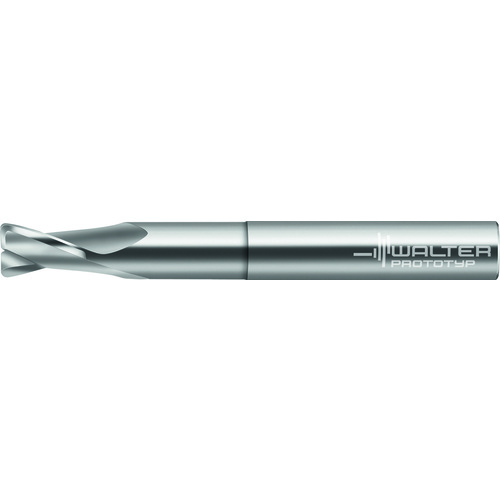

12mm Dia. × 16mm OAL 2 Flute Carbide 25° Helix End
Corner Radius End Mill; 12 mm Dia. × 50 mm LOC × 12 mm Shank Dia. × 100 mm OAL ; 2 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 12 mm | Flute Helix Angle (FHA) | CW|25 Degrees |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 50 mm | End Shape | Corner Radius |
| Overall Length (OAL) | 100 mm | Usable Length (LU) | 50 mm |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 1.5 mm |
| Coating | Uncoated | Decimal Equivalent | 0.4724″ |
| Flute Count (NOF) | 2 |
Product Features
| Family Description | H602881–12–1.5 | Country of Origin | Germany |
Shipping Info
Package Weight
0.325
