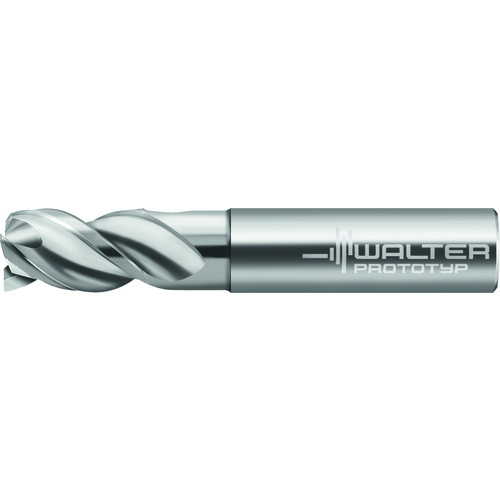

4mm Dia. × 8mm OAL 3 Flute Carbide 45° Helix End M
SQ End Mill; 4 mm Dia. × 15 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 0.5 mm RE ; 3 FL ; Carbide ; Uncoated
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 4 mm | Flute Helix Angle (FHA) | CW|45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 15 mm | End Shape | Corner Radius |
| Overall Length (OAL) | 57 mm | Usable Length (LU) | 15 mm |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 0.5 mm |
| Coating | Uncoated | Decimal Equivalent | 0.1575″ |
| Flute Count (NOF) | 3 |
Product Features
| Family Description | H602311–4 | Country of Origin | Germany |
Shipping Info
Package Weight
0.047
