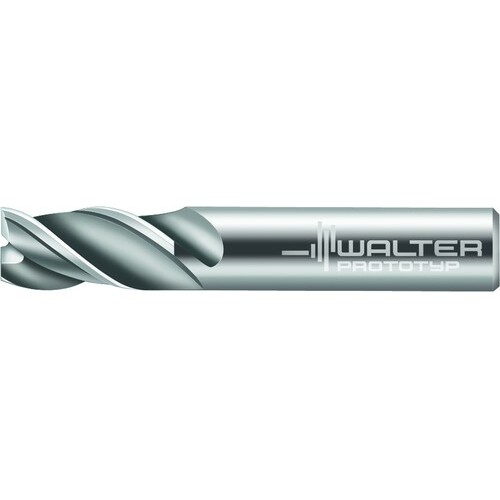

4mm Dia. × 8mm LOC 3 Flute Carbide 45° Helix End M
SQ End Mill; 4 mm Dia. × 8 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 3 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 4 mm | Coating | Uncoated |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 8 mm | Flute Helix Angle (FHA) | CW|45 Degrees |
| Overall Length (OAL) | 57 mm | Shank Type | Round |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.1575″ |
Product Features
| Family Description | H302914–4 | Country of Origin | Germany |
Shipping Info
Package Weight
0.046
