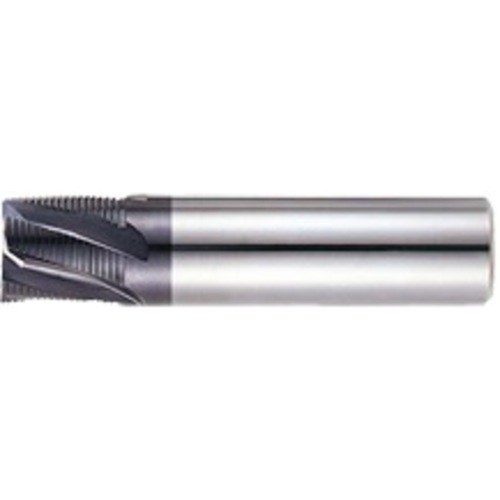

1/2″ Dia-3″ OAL-TiAlN CBD-Roughing HP EM-4 FL
SQ End Mill; 1/2″ Dia. × 5/8″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 0″ RE ; 4 FL ; 5/8″ LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/2″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 5/8″ | Usable Length (LU) | 5/8″ |
| Overall Length (OAL) | 3″ | Application | Roughing |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 0″ |
| Coating | AlTiN | Length Group | Stub |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.5″ |
Product Features
| Remarks | •Multi-Flute 20 Helix Stub Length Roughing End Mill with TiAIN Coating | Country of Origin | S.Korea |
Shipping Info
Package Length
3.60000
Package Width
.70000
Package Weight
0.25
LocalField3
A344
