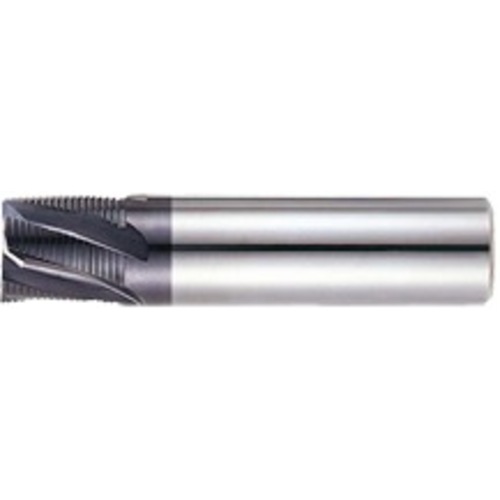

5/16″ Dia-2-1/4″ OAL-TiAlN CBD-Roughing HP EM-3 FL
SQ End Mill; 5/16″ Dia. × 3/8″ LOC × 5/16″ Shank Dia. × 2-1/4″ OAL ; 0″ RE ; 3 FL ; 3/8″ LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 5/16″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 3/8″ | Usable Length (LU) | 3/8″ |
| Overall Length (OAL) | 2-1/4″ | Application | Roughing |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 0″ |
| Coating | AlTiN | Length Group | Stub |
| Flute Count (NOF) | 3 |
Product Features
| Remarks | •Multi-Flute 20 Helix Stub Length Roughing End Mill with TiAIN Coating | Country of Origin | S.Korea |
Shipping Info
Package Length
2.60000
Package Width
.40000
Package Weight
0.084
LocalField3
A344
