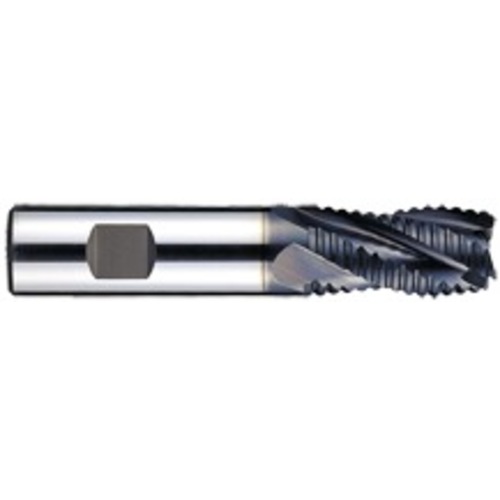

1/2″ Dia-3-1/4″ OAL-Alcrona M42-Roughing SE EM-4 FL
SQ End Mill; 1/2″ Dia. × 1-1/4″ LOC × 1/2″ Shank Dia. × 3-1/4″ OAL ; 4 FL ; 1-1/4″ LBS ; HSSCo ; AlCrN
| Cutting Diameter (DC) | 1/2″ | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Usable Length (LU) | 1-1/4″ |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Application | Roughing |
| Overall Length (OAL) | 3-1/4″ | Length Group | Standard |
| Cutting Edge Material | HSSCo | Flute Type | Coarse |
| Coating | AlCrN | Decimal Equivalent | 0.5″ |
Product Features
| Remarks | •S-Kut Coarse Tooth, Alcrona Coated, Cobalt Roughing End Mills •Excellent at dry milling with high speed cutting •Improved edge performance & wear resistance •Fine surface finish •Excellent results up to HRC 50–53 Hardness •Alcrona coated has oxidation resistance up to 1100°C | Country of Origin | S.Korea |
Shipping Info
Package Length
3.50000
Package Width
.70000
Package Weight
0.15
LocalField3
A245
