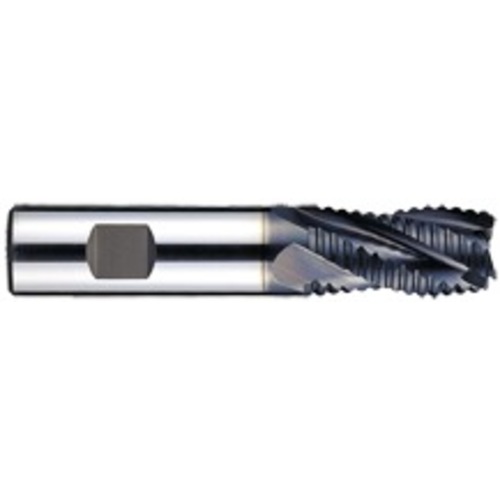

7/16″ Dia-2-11/16″OAL-Alcrona M42-Rough SE EM-4 FL
SQ End Mill; 7/16″ Dia. × 1″ LOC × 3/8″ Shank Dia. × 2-11/16″ OAL ; 4 FL ; 1″ LBS ; HSSCo ; AlCrN
| Cutting Diameter (DC) | 7/16″ | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Usable Length (LU) | 1″ |
| Depth of Cut Maximum (APMX) | 1″ | Application | Roughing |
| Overall Length (OAL) | 2-11/16″ | Length Group | Standard |
| Cutting Edge Material | HSSCo | Flute Type | Coarse |
| Coating | AlCrN |
Product Features
| Remarks | •S-Kut Coarse Tooth, Alcrona Coated, Cobalt Roughing End Mills •Excellent at dry milling with high speed cutting •Improved edge performance & wear resistance •Fine surface finish •Excellent results up to HRC 50–53 Hardness •Alcrona coated has oxidation resistance up to 1100°C | Country of Origin | S.Korea |
Shipping Info
Package Length
3.00000
Package Width
.60000
Package Weight
0.076
LocalField3
A245
