1/4X3/8 3FL S-KUT CO CRS

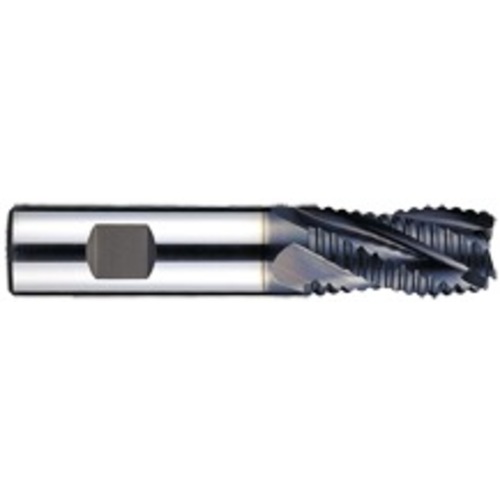

SQ End Mill; 1/4″ Dia. × 5/8″ LOC × 3/8″ Shank Dia. × 2-7/16″ OAL ; 3 FL ; 5/8″ LBS ; HSSCo ; AlCrN
| Cutting Diameter (DC) | 1/4″ | Flute Count (NOF) | 3 |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Usable Length (LU) | 5/8″ |
| Depth of Cut Maximum (APMX) | 5/8″ | Application | Roughing |
| Overall Length (OAL) | 2-7/16″ | Length Group | Standard |
| Cutting Edge Material | HSSCo | Flute Type | Coarse |
| Coating | AlCrN | Decimal Equivalent | 0.25″ |
Product Features
| Remarks | •S-Kut Coarse Tooth, Alcrona Coated, Cobalt Roughing End Mills •Excellent at dry milling with high speed cutting •Improved edge performance & wear resistance •Fine surface finish •Excellent results up to HRC 50–53 Hardness •Alcrona coated has oxidation resistance up to 1100°C | Country of Origin | S.Korea |
Shipping Info
Package Length
2.70000
Package Width
.50000
Package Weight
0.1
LocalField3
A245
