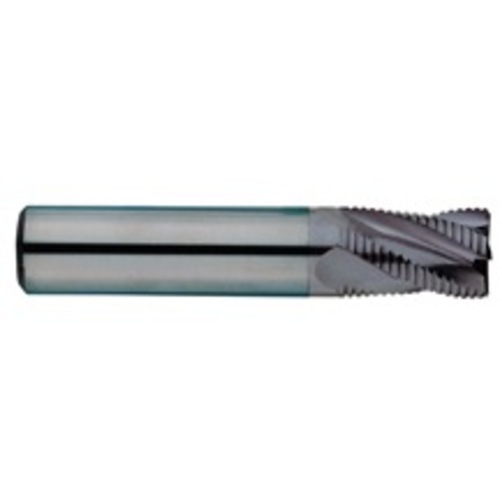

1″ Dia-4-5/8″ OAL-TiAlN CBD-Roughing HP EM-5 FL
SQ End Mill; 1″ Dia. × 1-11/16″ LOC × 1″ Shank Dia. × 4-5/8″ OAL ; 0″ RE ; 5 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1″ | End Shape | Square |
| Depth of Cut Maximum (APMX) | 1-11/16″ | Application | Roughing |
| Overall Length (OAL) | 4-5/8″ | Corner Radius (RE) | 0″ |
| Cutting Edge Material | Carbide | Length Group | Standard |
| Coating | AlTiN | Decimal Equivalent | 1″ |
| Flute Count (NOF) | 5 |
Product Features
| Remarks | •Multi-Flute 45 Helix Roughing End Mill with TiAIN Coating •Suitable for low hardened material (under HRc45), stainless steel •Excellent performance in slotting cutting condition •Shank tolerance: 0 -.0003 | Country of Origin | S.Korea |
Shipping Info
Package Length
5.30000
Package Width
1.10000
Package Height
1.10000
Package Weight
1.566
LocalField3
A340
