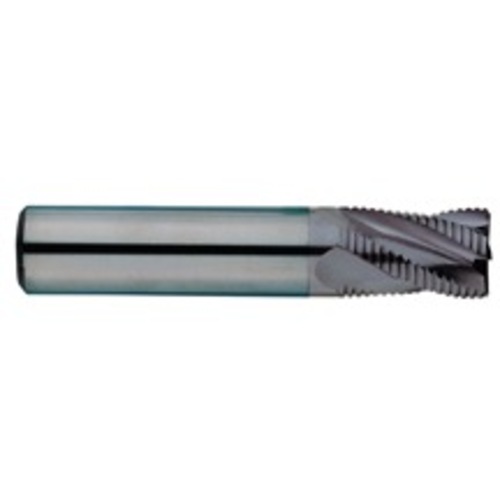

5/8″ Dia-3-7/8″ OAL-TiAlN CBD-Roughing HP EM-4 FL
SQ End Mill; 5/8″ Dia. × 1-3/16″ LOC × 5/8″ Shank Dia. × 3-7/8″ OAL ; 0″ RE ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 5/8″ | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 1-3/16″ | End Shape | Square |
| Overall Length (OAL) | 3-7/8″ | Application | Roughing |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 0″ |
| Coating | AlTiN | Length Group | Standard |
Product Features
| Remarks | •Multi-Flute 45 Helix Roughing End Mill with TiAIN Coating •Suitable for low hardened material (under HRc45), stainless steel •Excellent performance in slotting cutting condition •Shank tolerance: 0 -.0003 | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.562
LocalField3
A340
