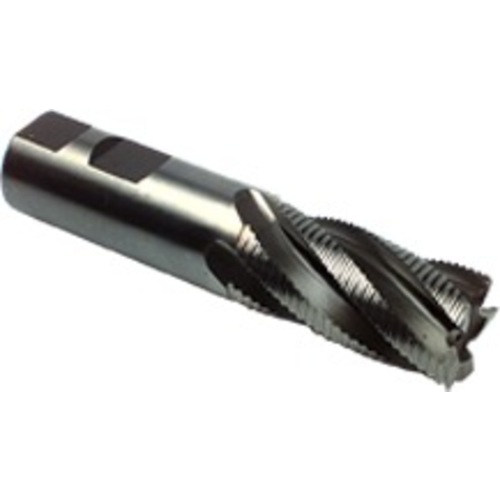

1-1/4″ Dia-4-1/2″ OAL-M42-Roughing SE EM-6 FL
SQ End Mill; 1-1/4″ Dia. × 2″ LOC × 1-1/4″ Shank Dia. × 4-1/2″ OAL ; 6 FL ; HSSCo ; Uncoated
| Cutting Diameter (DC) | 1-1/4″ | Flute Count (NOF) | 6 |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Usable Length (LU) | 2″ |
| Depth of Cut Maximum (APMX) | 2″ | Application | Roughing |
| Overall Length (OAL) | 4-1/2″ | Length Group | Standard |
| Cutting Edge Material | HSSCo | Flute Type | Fine |
| Coating | Uncoated | Decimal Equivalent | 1.25″ |
Product Features
| Remarks | •M-42 Cobalt - Fine Tooth Roughing End Mills •For high production milling in difficult to machine materials such as iconel, hastalloy, titanium alloys and other materials up to 40 Rc. •The pressure of the cut is distributed over many teeth •Less friction •Breakage and cracks are eliminated •TiN coating improves tool life and allows elevated feeds and speeds •TiCN coating is ideal for cutting extremely abrasive or difficult to cut materials | Country of Origin | S.Korea |
Shipping Info
Package Weight
1.4
LocalField3
A251
