7/16X7/16X9/16X2_1/2 5FL

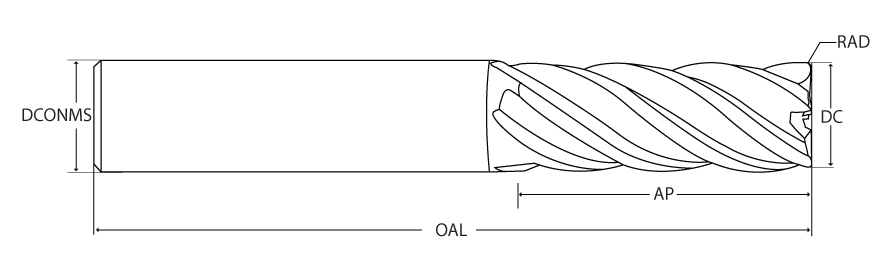

Corner Radius End Mill; 7/16″ Dia. × 9/16″ LOC × 7/16″ Shank Dia. × 2-1/2″ OAL ; 5 FL ; Carbide ; TiAICN ; Series 429
| Cutting Diameter (DC) | 7/16″ | Grade | A5009 Varianta Supral |
| Connection Diameter Machine Side (DCONMS) | 7/16″ | Peripheral Effective Cutting Edge Count (ZEFP) | 5 |
| Depth of Cut Maximum (APMX) | 9/16″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 2-1/2″ | Maximum Feed per Tooth (fz(max)) | 0.003 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.001 ″/tooth |
| Coating | TiAICN | Length Group | Stub |
| Flute Count (NOF) | 5 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.4375″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 9/16″ | Series/List # | 429 |
| Application | Roughing | Semi Finishing | Shank Size (SS) | 7/16″ |
| Corner Radius (RE) | 0.03″ |
Product Features
| Family Description | 429 SERIES 5 FLUTE MEDIUM PITCH ROUGHER | Country of Origin | USA |
Shipping Info
Package Weight
0.245
