3/4X3/4X1 1/2X4X4FL RH

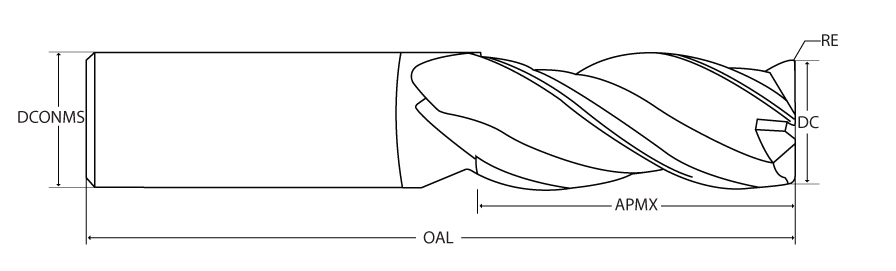

Corner Radius End Mill; 3/4″ Dia. × 1-1/2″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; TiAICN ; Series 430
| Cutting Diameter (DC) | 3/4″ | Grade | A5009 Varianta Supral |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 4″ | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Coating | TiAICN | Length Group | Standard |
| Flute Count (NOF) | 4 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 40 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.75″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 1-1/2″ | Series/List # | 430 |
| Application | Roughing | Shank Size (SS) | 3/4″ |
| Corner Radius (RE) | 0.06″ |
Product Features
| Family Description | 430 SERIES 4 FLUTE MEDIUM PITCH NEGATIVE RAKE ROUGHER | Country of Origin | USA |
Shipping Info
Package Weight
1.152
